Prerequisites

Valid partner credentials (partner_id, partner_secret, organization_id, organization_secret)
Parchment SSO Integration: You must first set up Parchment SSO before implementing iframe embedding
Your domain needs to be whitelisted in Parchment’s environments

Implementation Steps

1. Generate SSO Token with Embed Path

When generating an SSO token for iframe embedding, use the /embed/ prefix in your redirect path:

🚀 API Endpoint
POST /v1/sso

Headers:

x-partner-id: Your partner ID
x-partner-secret: Your partner secret
x-organization-id: Target organization ID
x-organization-secret: Organization secret
x-user-id: Parchment user ID to authenticate
Content-Type: application/json

Request Body:

{
  "redirect_path": "/embed/patients/f03b972b-53ea-452d-ae48-024817f6c3b0/prescriptions"
}

Important: The /embed/ prefix in the redirect_path tells Parchment to render the page in iframe-optimized mode, removing navigation elements and adjusting the layout for embedded display.

Available Embed Paths

Path	Description
`/embed/patients/{patient_id}/prescriptions`	Prescription form for a specific patient. Main entry point for creating new prescriptions.
`/embed/patients/{patient_id}/prescriptions/{prescription_id}`	View or manage an existing prescription for a patient.
`/embed/prescriptions/approval`	Approval dashboard for reviewing, approving, amending, or rejecting queued prescriptions.

Response:

{
  "success": true,
  "data": {
    "sso_token": "eyJ...",
    "redirect_url": "https://portal.parchment.health/auth/sso?token=eyJ...&redirect=%2Fembed%2Fpatients%2F...",
    "expires_in": 300
  }
}

Query Parameters

The prescription form (/embed/patients/{patient_id}/prescriptions) accepts query parameters to pre-fill fields and to pass partner data through to webhooks. Append them to the redirect_path when generating the SSO token — they are preserved through the SSO redirect onto the embedded page:

{
  "redirect_path": "/embed/patients/f03b972b-53ea-452d-ae48-024817f6c3b0/prescriptions?custom_drug_id=DRUG%2342&quantity=2&reserved_1=ORDER-9087"
}

URL-encode all values (e.g. a space becomes %20, # becomes %23).

Pre-fill parameters

Parameter	Type	Constraints	Description
`custom_drug_id`	string	non-empty	Selects a custom drug from the organization catalog as the medication.
`quantity`	integer	1–99	Quantity to dispense.
`repeats`	integer	0–99	Number of repeats.
`repeats_interval`	integer	1–365	Minimum interval (days) between repeats.
`patient_instructions`	string	≤ 250 chars	Directions for the patient. Longer values are truncated.
`doctor_instructions`	string	≤ 50 chars	Note for the dispenser. Longer values are truncated.

Invalid numeric values are ignored (a warning is shown in the form); over-length text is truncated.

Reserved parameters

Opaque pass-through values for partner use. They are shown read-only on the form and delivered on the resulting webhook in the top-level metadata object (see Webhook Events).

Parameter	Type	Constraints	Description
`reserved_1`	string	≤ 30 chars	Reserved partner data. Longer values are truncated.
`reserved_2`	string	≤ 30 chars	Reserved partner data. Longer values are truncated.
`reserved_3`	string	≤ 30 chars	Reserved partner data. Longer values are truncated.

Each reserved field is independent of the pre-fill precedence above. A field only appears on the form (and is forwarded to the webhook) when it is present and non-empty; absent fields are delivered as null. Example A telehealth partner wants to tie the resulting prescription webhook back to their own records — the booking it came from, the consultation, and the acquisition channel. They pass those as reserved fields when generating the SSO token:

{
  "redirect_path": "/embed/patients/f03b972b-53ea-452d-ae48-024817f6c3b0/prescriptions?reserved_1=BK-2026-4471&reserved_2=consult_88213&reserved_3=app-ios"
}

When the clinician creates the prescription, Parchment echoes those exact values on the webhook’s metadata, so the partner can reconcile the event against their booking system without any extra lookup:

{
  "event_type": "prescription.created",
  "data": {
    "patient_id": "f03b972b-53ea-452d-ae48-024817f6c3b0",
    "partner_patient_id": "1523402100149593750",
    "user_id": "8e1c9bab-6614-4723-8981-87c8fa026dae",
    "scid": "2TM1XVXBJRWXH8NM68"
  },
  "metadata": {
    "reserved_1": "BK-2026-4471",
    "reserved_2": "consult_88213",
    "reserved_3": "app-ios"
  }
}

2. Embed in Your Application

Use the returned redirect_url as the iframe source:

<iframe
  src={iframeUrl}
  className="absolute inset-0 size-full border-0"
  allow="clipboard-write; publickey-credentials-get *; publickey-credentials-create *"
  referrerPolicy="strict-origin-when-cross-origin"
  title="Parchment Portal"
/>

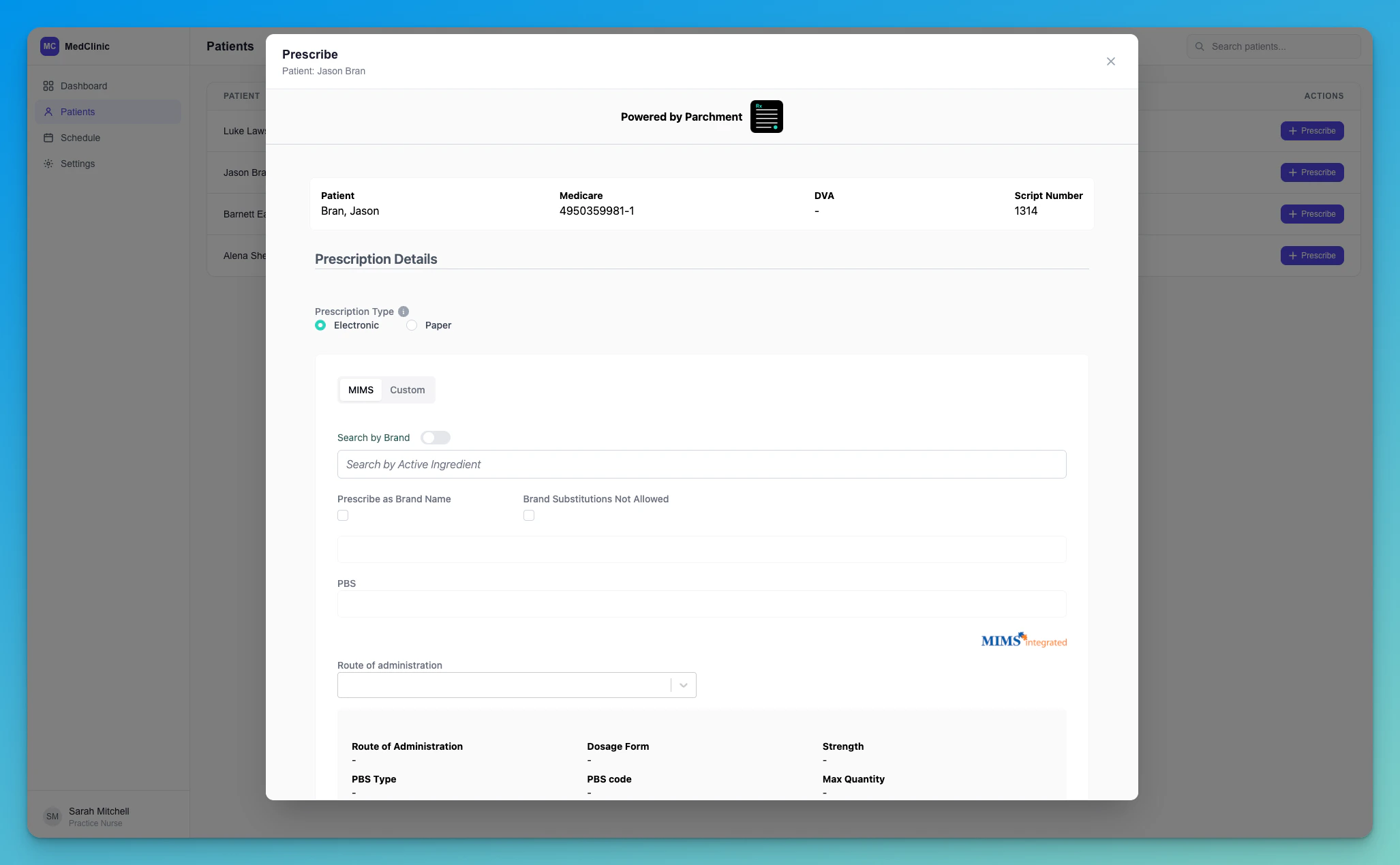

Result

Troubleshooting

Blank page with “HTTP ERROR 431”

If the embedded iframe (or the portal itself) shows a blank page reading HTTP ERROR 431 — Request Header Fields Too Large, the browser has accumulated too many Parchment authentication cookies on the parchment.health domain and the request header has grown past the server’s size limit. This almost always happens during integration testing, when the same browser signs in many times in a short period — each sign-in can leave behind cookies that aren’t cleaned up. End-users who sign in occasionally are very unlikely to see it.

This is a browser-side cookie limit, and the error is returned before the page loads — so refreshing or navigating to another Parchment URL won’t fix it. The cookies have to be cleared.

Open cookie storage for the Parchment domain

Open DevTools → Application → Cookies, then select the https://portal.<env>.parchment.health entry.

Clear the Parchment cookies

Click Clear all cookies (🚫) to remove every cookie for that domain — in particular the CognitoIdentityServiceProvider.* entries.

Relaunch

Generate a fresh SSO token and load the iframe again. You’ll sign in cleanly and the error will be gone.

To avoid this entirely while testing, use an incognito/private window (or a separate browser profile) for each round of sign-in testing — its cookies are discarded when the window closes.
